Specifications

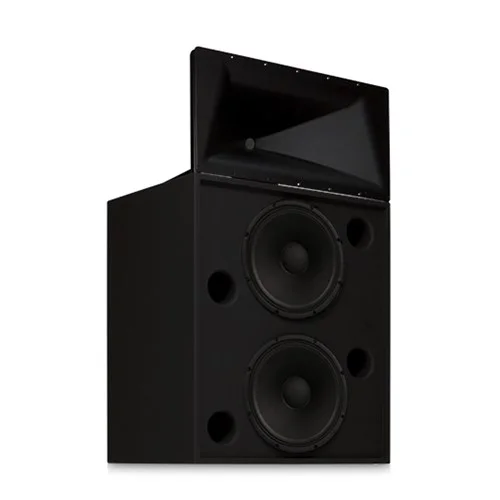

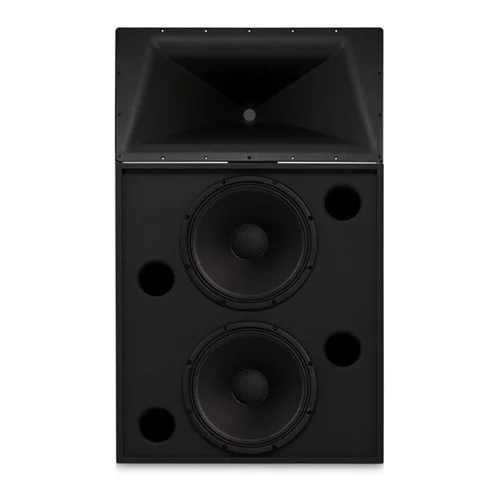

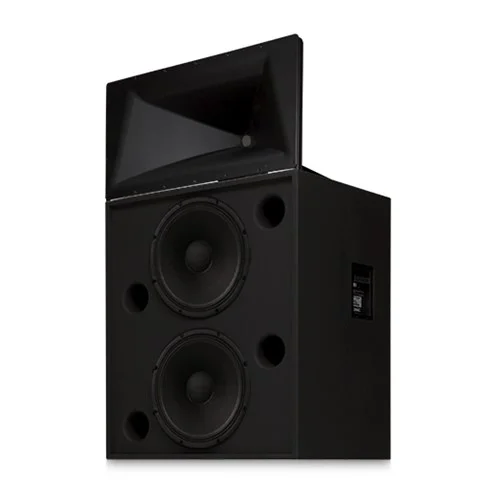

• SPECIFICATIONS – SC-222X
• Nominal Coverage : 90° horizontal x +20° to -35° vertical
• Frequency Range : 37 Hz – 16 kHz (-6 dB)
• Impedance : 4Ω
• Sensitivity (1W/1m, half space) : 98 dB
• Maximum Input Power :
  • 2 hours of 6 dB crest factor pink noise 300 W RMS
  • 50 Hz – 20 kHz, AES method
• Recommended Amplifier Power : 1200 W RMS maximum
• Recommended Processing : Subsonic filter below 30 Hz, > 18 dB/octave
• LF Model : LF-2215
• HF Model : HF-75CX2
• Connectors :
  • LF : Barrier strip screw terminals accept up to #10 AWG stranded wire
  • HF : Barrier strip screw terminals accept up to #10 AWG stranded wire
• Transducers :
  • LF : Two 15″ (381 mm) high efficiency extended bass woofers, 3″ copper voice coils
  • HF : 1.5″ (38 mm) exit, 3″ titanium diaphragm compression driver
• Enclosure :
  • LF : Quasi B4 alignment, ported enclosure, MDF construction, flared ports, vandal-resistant mounting bolts
  • HF : Tilt/Pan Bracket ±10° vertical tilt, ±10° horizontal pan
• Dimensions (HWD) :
  • LF : 35.75” × 30” × 20.3” (908 × 762 × 516 mm)
  • HF : 16” × 30” × 20” (406 × 762 × 508 mm)
• Weight – Net :
  • LF : 172 lb (78 kg)
  • HF : 40 lb (18.4 kg)
• System Weight : 212 lb (96.4 kg)
• Baffle Cut-Out : 53” × 32”
