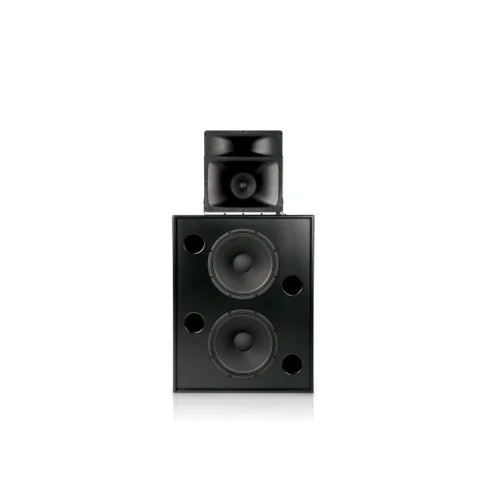

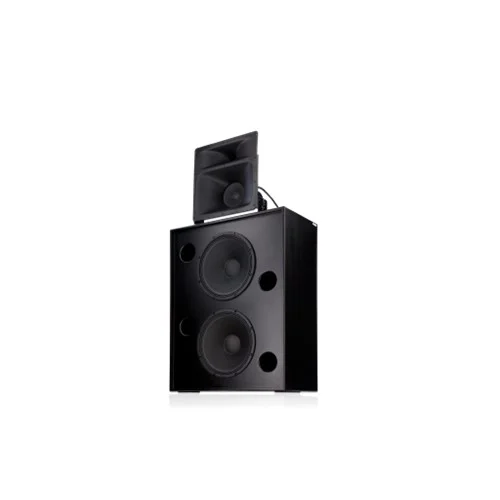

QSC SC-2150

QSC SC-2150

Features

  • Optimized design for smaller cinemas – up to 55 ft (16.6 m) in length
  • 3-way selectable, bi-amplified or full passive screen channel system
  • Heavily braced, MDF low-frequency enclosure for extended bass response
  • 6.5-inch horn loaded midrange driver provides highly articulate dialogue

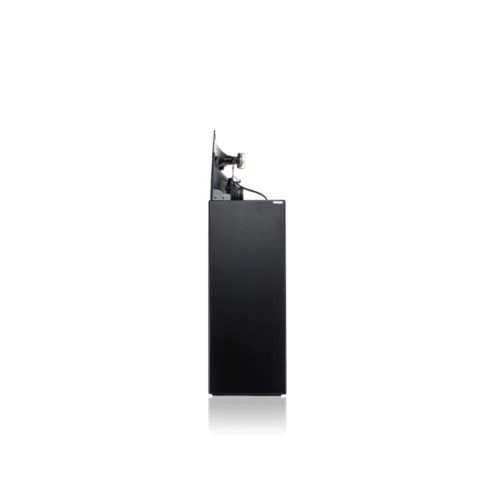

  • Very shallow 14.5-inch (368 mm) depth reduces space required behind the screen
  • Advanced crossover circuitry protects the HF and MF drivers from over- powering and excessive low-frequency program material

* U.S. Patent 7,367,423

Quick info
Category:

Description

Features

  • Optimized design for smaller cinemas – up to 55 ft (16.6 m) in length
  • 3-way selectable, bi-amplified or full passive screen channel system
  • Heavily braced, MDF low-frequency enclosure for extended bass response
  • 6.5-inch horn loaded midrange driver provides highly articulate dialogue
  • Very shallow 14.5-inch (368 mm) depth reduces space required behind the screen
  • Advanced crossover circuitry protects the HF and MF drivers from over- powering and excessive low-frequency program material

* U.S. Patent 7,367,423

Specifications

  • SPECIFICATIONS – SC-2150
  • Nominal Coverage (-6 dB) : 90° horizontal × 40° vertical
  • Frequency Response (-6 dB) : 38 Hz – 20 kHz
  • Frequency Range (-10 dB) : 32 Hz – 20 kHz
  • Crossover Frequencies (passive) : 500 Hz & 2200 Hz
  • Crossover Frequencies (bi-amp) : 500 Hz active (24 dB/oct), 2200 Hz passive
  • Sections :

    • LF Enclosure
    • Mid-High System
  • Impedance :

    • LF Enclosure : 4 ohms
    • Mid-High System : 8 ohms
  • Sensitivity (1W/1m, half space) :

    • LF Enclosure : 100 dB
    • Mid-High System : 102 dB
  • Maximum Input Power :

    • LF Enclosure : 500 W continuous
    • Mid-High System : 80 W continuous
  • Maximum Recommended Amplifier Power :

    • LF Enclosure : 1000 W continuous
    • Mid-High System : 320 W continuous
  • Recommended Processing :

    • LF Enclosure : Subsonic filter below 30 Hz, >18 dB/octave
    • Mid-High System : 4th-order LR crossover at 500 Hz (QSC processing)
  • Connectors :

    • LF Enclosure : Barrier strip (up to #10 AWG)
    • Mid-High System : Factory installed NL4 plug
  • Transducers :

    • LF Enclosure : Two 15-inch (381 mm) high-efficiency woofers with 3-inch voice coils
    • Mid-High System : 6.5-inch midrange + 1-inch exit (1.4-inch diaphragm) compression driver
  • Enclosure :

    • LF Enclosure : Ported MDF cabinet, symmetrical port design, tuned to 40 Hz, heavily braced
    • Mid-High System : Tilt/Pan Bracket (−20° to +10° vertical, ±15° horizontal)
  • Dimensions (H×W×D) – inches :

    • LF Enclosure : 38.3 × 30 × 14.5 in
    • Mid-High System : 17.3 × 16.3 × 6.8 in
  • Dimensions (H×W×D) – mm :

    • LF Enclosure : 762 × 972 × 368 mm
    • Mid-High System : 414 × 440 × 173 mm
  • Net Weight :

    • LF Enclosure : 107 lb / 48.5 kg
    • Mid-High System : 10 lb / 4.5 kg
  • Shipping Weight :

    • LF Enclosure : 121 lb / 54.9 kg
    • Mid-High System : 12 lb / 5.4 kg
  • System Net Weight : 117 lb / 53.1 kg
  • System Shipping Weight : 133 lb / 60.3 kg
  • Baffle Cut-Out : 30.5 in × 56.1 in (775 mm × 1425 mm)

Downloads

QSC SC-2150 Specifications
