MAG SCR-25M

MAG SCR-25M

MAG SCR-25M

Heavy duty
Rigid, reliable enclosure designs
Quality enclosure
Carefully designed own components
Constant experience
Superior sound experience for any theater size
Easily fit
Ease of connection with built-in passive crossovers

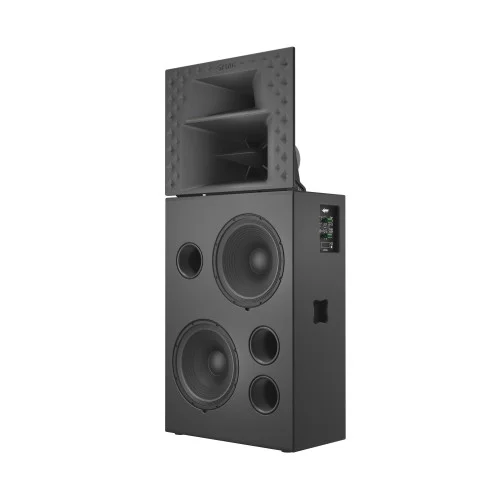

SCR-25M is a 2x 15” + 8” + 1” screen system ensuring solid SPL headroom for mid-sized halls, while MF-HF section with tilt/pan functions provides smooth control for the precise sound aiming. With greater sensitivity and less power drain, it adds even more value with reduced amplification and power network costs.

Quick info
Category:

Description

MAG SCR-25M

Heavy duty: Rigid, reliable enclosure designs
Quality enclosure: Carefully designed own components
Constant experience: Superior sound experience for any theater size
Easily fit: Ease of connection with built-in passive crossovers

SCR-25M is a 2x 15” + 8” + 1” screen system ensuring solid SPL headroom for mid-sized halls, while MF-HF section with tilt/pan functions provides smooth control for the precise sound aiming. With greater sensitivity and less power drain, it adds even more value with reduced amplification and power network costs.

Specifications

  • Type: Cinema Screen Speaker
  • Frequency response (+3-6dB): 40 – 20,000 Hz
  • Max continuous SPL 2: 129.5 dB
  • Sensitivity (1W/1m) (half-space) 1:
    • 102 dB LF / 105 dB MHF bi-amp
    • 102 dB LF / 105 dB MF / 111 dB HF tri-amp
  • Driver: 2 x 15” + 8″ + 1”
  • Nominal impedance:
    • 4 Ohm LF / 8 Ohm MHF bi-amp
    • 4 Ohm LF / 8 Ohm MF / 8 Ohm HF tri-amp
  • Rated power 3:
    • 550 W LF / 300 W MHF bi-amp
    • 550 W LF / 250 W MF / 70 W HF tri-amp
  • Coverage Horizontal 4: 70°-90° variable
  • Coverage Vertical 4: 40°
  • MHF section vertical tilt angle: -4° (up) – +16° (down)
  • MHF section horizontal pan angle: -25° – +25°
  • Recommended amplifier power:
    • 550 – 1100 W LF
    • 300 – 600 W MHF biamp
    • 250 – 500 W MF triamp
    • 70 – 140 W HF triamp
  • Recommended high pass filter: LF 40 Hz BW24
  • Recommended crossover bi-amp: LF-MHF 300 Hz LR24
  • Recommended crossover tri-amp: LF-MF 300Hz LR24; MF-HF 1000Hz LR24
  • Connectors: Phoenix
  • Dimensions (WxHxD): 720x1623x416 mm
  • Net weight: 83.4 kg
  • Gross Weight: 87.4 kg
  • Mounting: 4xM5 floor mounting
  • Enclosure material: Plywood, MDF; wear-resistant paint
  • Color: Black

Downloads

SCR-25M Datasheet
