MAG SCR-22M

MAG SCR-22M

Heavy duty
Rigid, reliable enclosure designs
Quality enclosure
Carefully designed own components
Constant experience
Superior sound experience for any theater size
Easily fit
Ease of connection with built-in passive crossovers

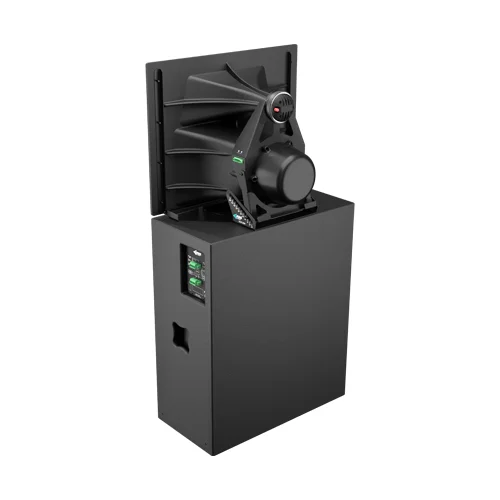

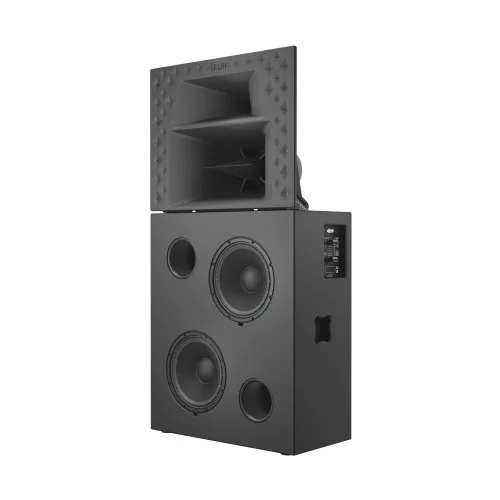

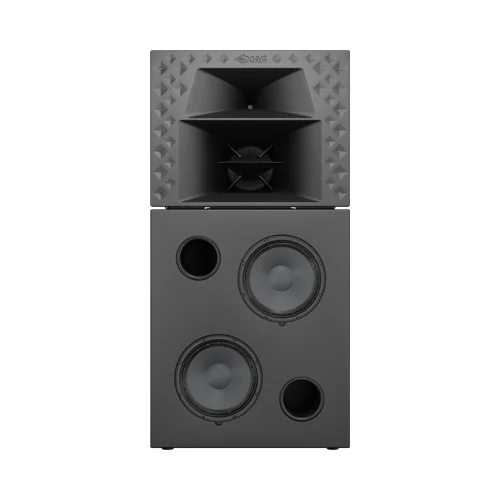

Providing great value for mid-sized halls, SCR-22M is a 2x 12’’ + 8’’ + 1’’ screen speaker with MF-HF section tilt/pan function for perfect sound axis positioning. Component design was calibrated for superior performance resulting in optimal amplifier usage and less total power consumption.

Quick info
Category:

Description

Heavy duty: Rigid, reliable enclosure designs
Quality enclosure: Carefully designed own components
Constant experience: Superior sound experience for any theater size
Easily fit: Ease of connection with built-in passive crossovers

Providing great value for mid-sized halls, SCR-22M is a 2x 12’’ + 8’’ + 1’’ screen speaker with MF-HF section tilt/pan function for perfect sound axis positioning. Component design was calibrated for superior performance resulting in optimal amplifier usage and less total power consumption.

Specifications

  • Type: Cinema Screen Speaker
  • Frequency response (+3-6dB): 40 – 20,000 Hz
  • Max continuous SPL 2: 129.5 dB
  • Sensitivity (1W/1m) (half-space) 1:
    • 102 dB LF / 105 dB MHF bi-amp
    • 102 dB LF / 105 dB MF / 111 dB HF tri-amp
  • Driver: 2 x 15” + 8″ + 1”
  • Nominal impedance:
    • 4 Ohm LF / 8 Ohm MHF bi-amp
    • 4 Ohm LF / 8 Ohm MF / 8 Ohm HF tri-amp
  • Rated power 3:
    • 550 W LF / 300 W MHF bi-amp
    • 550 W LF / 250 W MF / 70 W HF tri-amp
  • Coverage Horizontal 4: 70°-90° variable
  • Coverage Vertical 4: 40°
  • MHF section vertical tilt angle: -4° (up) – +16° (down)
  • MHF section horizontal pan angle: -25° – +25°
  • Recommended amplifier power:
    • 550 – 1100 W LF
    • 300 – 600 W MHF biamp
    • 250 – 500 W MF triamp
    • 70 – 140 W HF triamp
  • Recommended high pass filter: LF 40 Hz BW24
  • Recommended crossover bi-amp: LF-MHF 300 Hz LR24
  • Recommended crossover tri-amp: LF-MF 300Hz LR24; MF-HF 1000Hz LR24
  • Connectors: Phoenix
  • Dimensions (WxHxD): 720x1623x416 mm
  • Net weight: 83.4 kg
  • Gross Weight: 87.4 kg
  • Mounting: 4xM5 floor mounting
  • Enclosure material: Plywood, MDF; wear-resistant paint
  • Color: Black

Downloads

SCR-22M Datasheet
